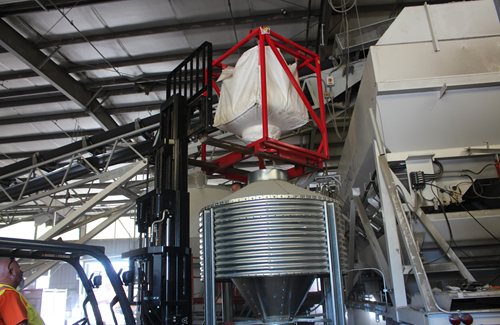

Our UltraFiber 500® Automated Gen2 Dispenser brings higher safety standards to the simple and highly successful original design, allowing for top or front loading. It allows for lifts from the bottom of the sack to a 4' height, from above the sack or over the top of the bin. When front loading, there is no need to empty the super sack, as this design allows for gravity feed directly from the bottom of the bag. Whether front loading through the locking weatherproof doors, or using the included hanger rack to refill, your operators can refill the system safely and easily. New technology features, such as flow detection of the fiber and low voltage wiring, also make the system easier to install and increases reliability and operation.

Improve Profitability

Improve profitability, efficiency, and safety with UltraFiber 500 Automated Gen2 Dispenser. As the only truly automated system on the market, our UltraFiber 500 Automated Gen2 Dispenser is as unique and innovative as UltraFiber 500 itself.

Control

The UltraFiber 500 automated dispenser seamlessly integrates with most existing control systems; a computer slot module or optional timer box for automation is required. Batch managers can dose exact amounts of fiber without leaving the workstation. Batch tickets confirm fiber dosage.

Solomon Advantage

All UltraFiber 500 dispensers are designed and built by Solomon Colors in the United States. Designated Solomon Colors service technicians are available nationwide for troubleshooting, preventative maintenance, and repair to keep your plant up and running. Call (866)985-8324 for a qualified technician during normal business hours and an after hours paging system.

Flexibility

An UltraFiber 500 automated dispenser can be easily placed in most plants. The dispenser can be placed up to 100 feet from the discharge point and the flexible auger can bend around corners up to 60 degrees. Beyond that, the UltraFiber 500 automated dispenser only requires a stable base, electrical hookups, and compressed air.

Speed & Accuracy

UltraFiber 500 automated dispensers have a high feed rate and can satisfy as much as 10 cy of concrete in a minute. High capacity storage holds enough fiber for over 1000 cy at a 1.5 lb./cy rate. 600-lb. super sacks and convenient loading designs make it easy to refill in a matter of minutes.

Compatibility:

UltraFiber 302 Blend is compatible with all commonly used concrete admixtures and traditional mix designs. No additional admixtures are required for workability.

Specifications

  • 1000 lb. capacity
  • Feed rate: Approx 15 lbs./min
  • Max auger length: Up to 100'
  • Max auger angle: 60 degrees

Footprint

  • Height: 115"
  • Length/width: 52" x 52"

Customer Requirements

  • Base: 5' x 5' concrete pad for stability
  • Electricity: 110 V, 15 AMP
  • Compressed air
  • Electrician, man-lift, and welder at installation (provided by customer)

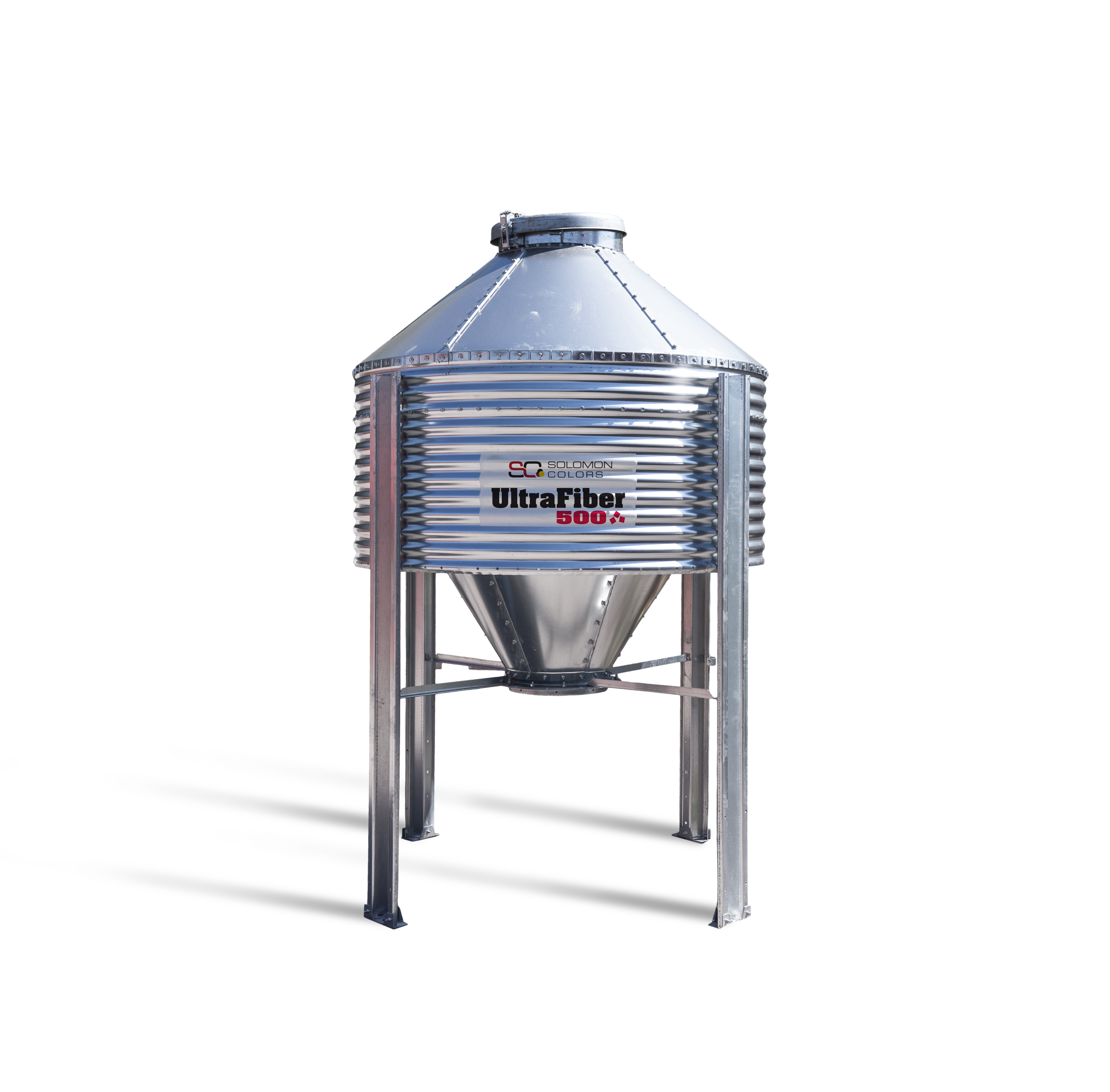

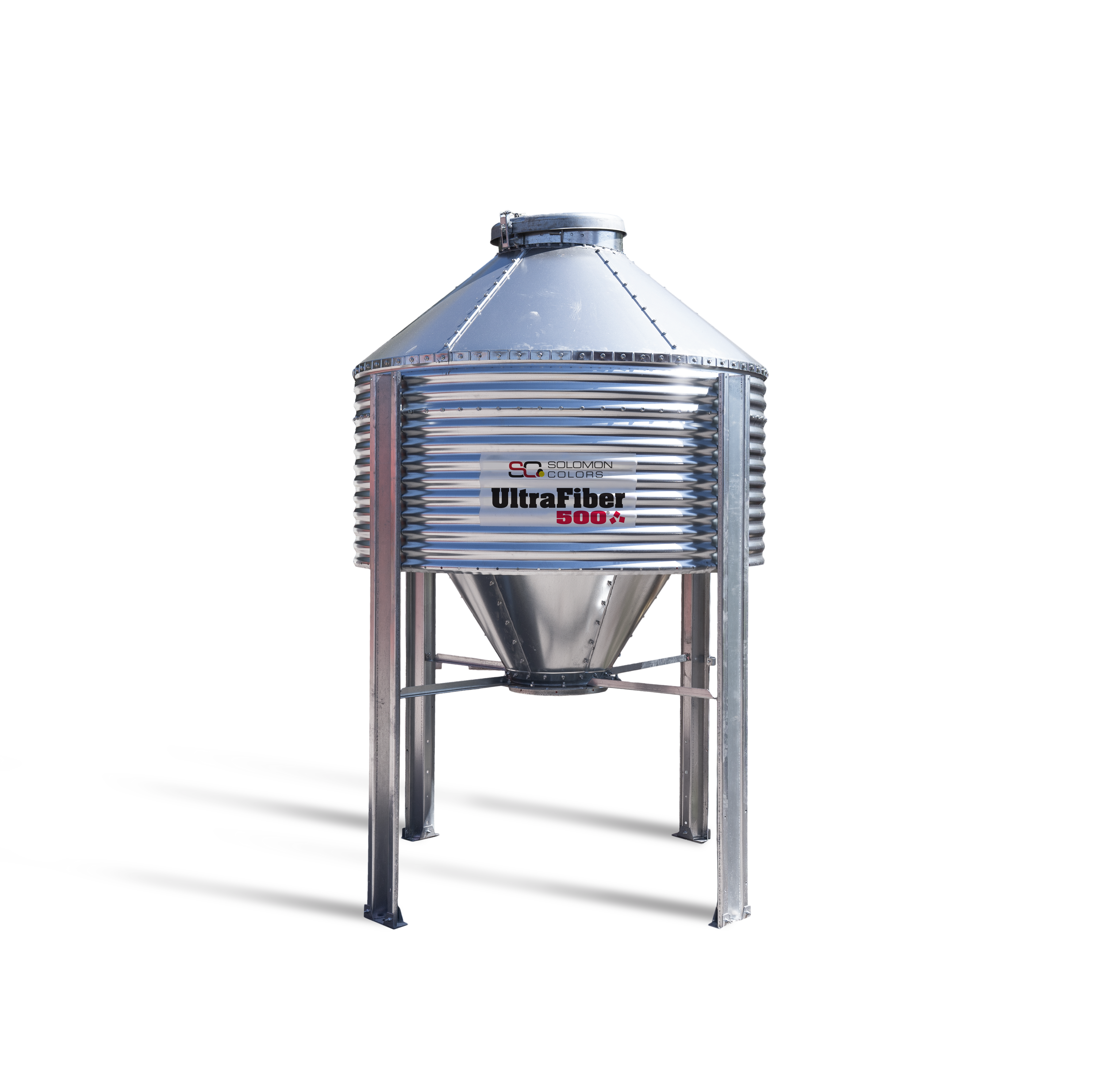

UltraFiber 500® Automated Dispenser

Document English Spanish Manderin
UltraFiber Equipment Cut Sheet Download PDF
UltraFiber Product Guide Download PDF

UltraFiber 500

As the only fiber that readily absorbs decorative colors for concrete and results in a smooth clean finish, UltraFiber 500® is the natural choice for architectural and decorative concrete.
