GBS 2.0 - Next-Gen Granular Bagging for Concrete Pigment

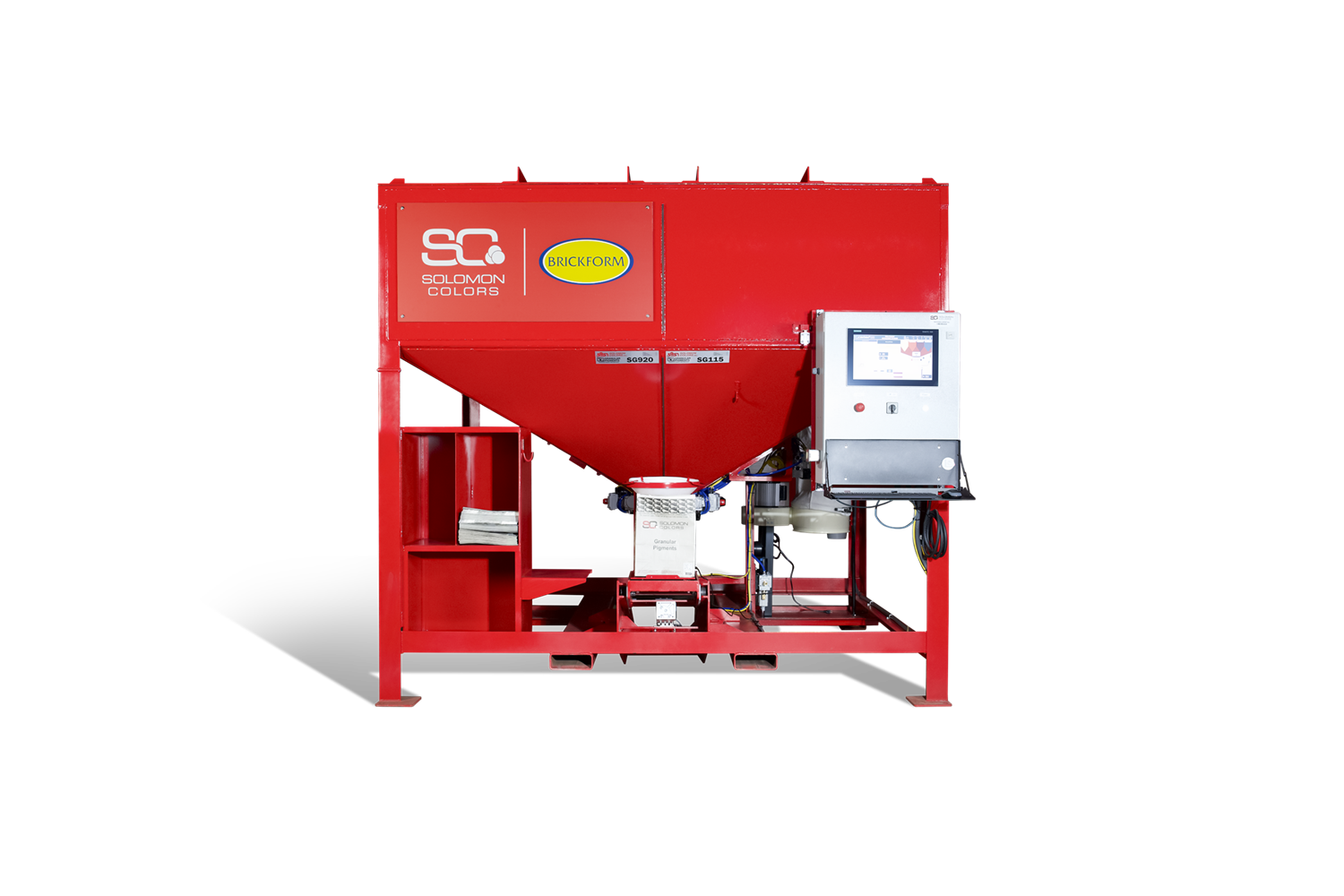

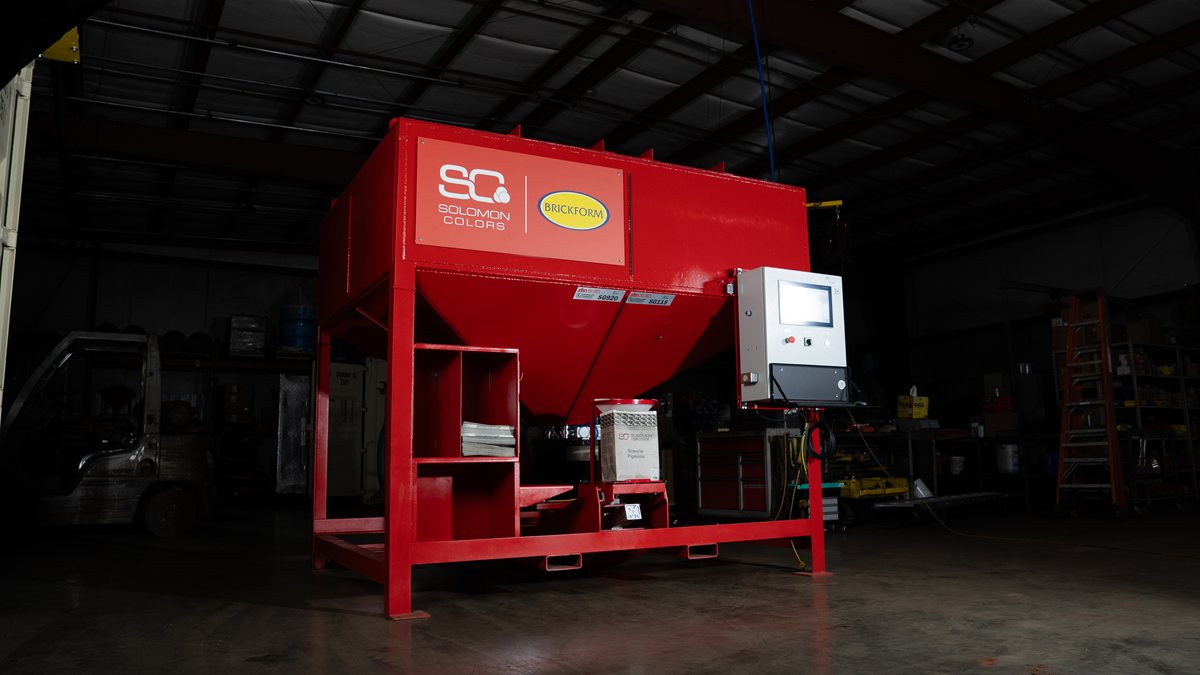

Granular Bagging System (GBS-2.0)

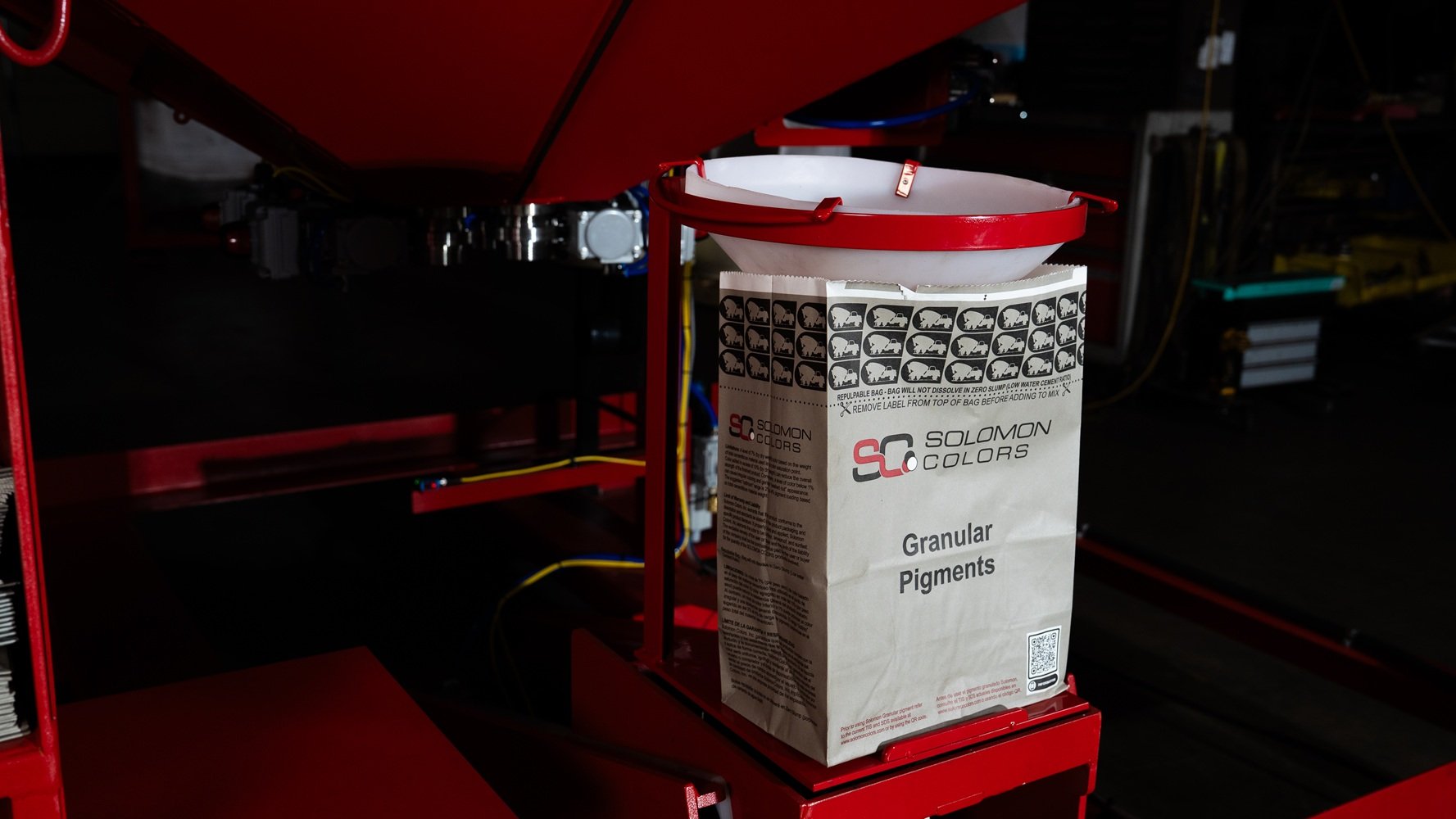

Introducing a better way to bag color! Our next-generation granular bagging system is here. With a low-profile design that can be placed against a wall, and a trolley that raises up for easier bag access, it's engineered to streamline your operation.

Download Cut Sheet (PDF)

Learn more about the improvements in this blog post.

System

Front-Side Color Loading with small footprint
Ergonomic finished bag take-off height
Dual Rack Options: Bag unload racks for high or low ceiling heights

User-friendly 15” PC touch screen interface
Built-in cellular remote access for real-time support and updates
Multi-position dosing valves for highly accurate batch weights

Specifications

2,400-2,700lb Super Sacks
Dispenses up to 75 lbs./min.
System accuracy of +/- 0.05 lb.
15 and 25 lb. repulpable bags or 5 gal. buckets

Footprint

Width: 9'
Depth: 7'
Height: 8' (Short Rack - 15' / Tall Rack - 16 1/2'

Requirements

Electricity: 110 V, 15 Amp
Clean, Dry Air: 5 CFM at 80 PSI
Water: None

The Original GBS Dispenser

The original QuickColor® Granular Bagging System is a feat of engineering that set the standard for reliable, high-quality color batching. And while we've improved upon that same great machine with our latest model, you can still count on us for continued service and support to keep your system running smoothly.
