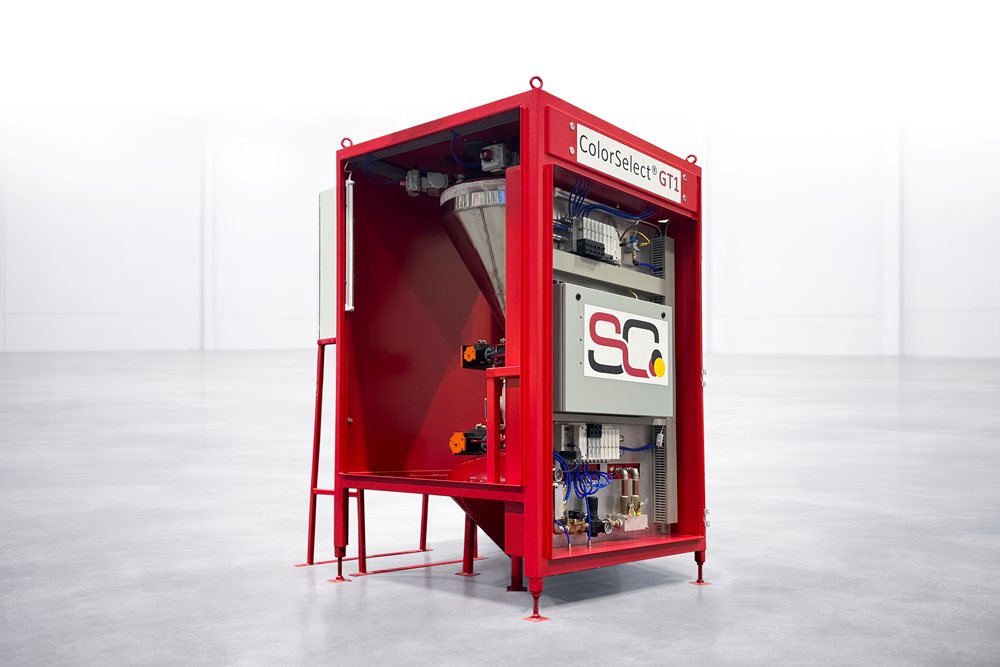

ColorSelect® GT-1

Transform your concrete coloring process with Solomon Colors' ColorSelect® GT-1. This custom-built dispenser delivers precise ColorFlo® Granular pigment for concrete products manufacturers, boosting efficiency and quality.

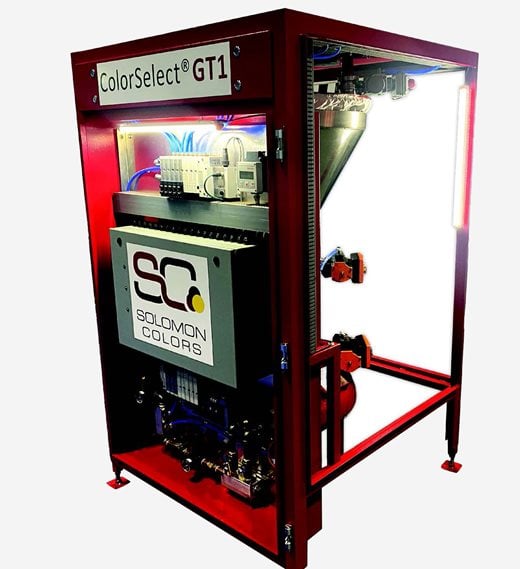

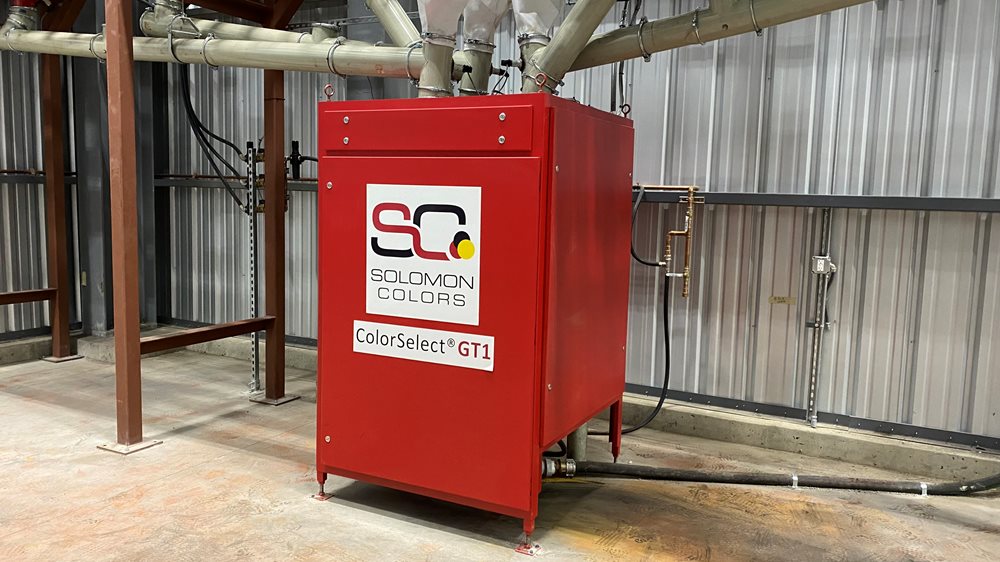

Custom-built ColorFlo® Granular pigment dispenser for use in concrete products manufacturing.

System

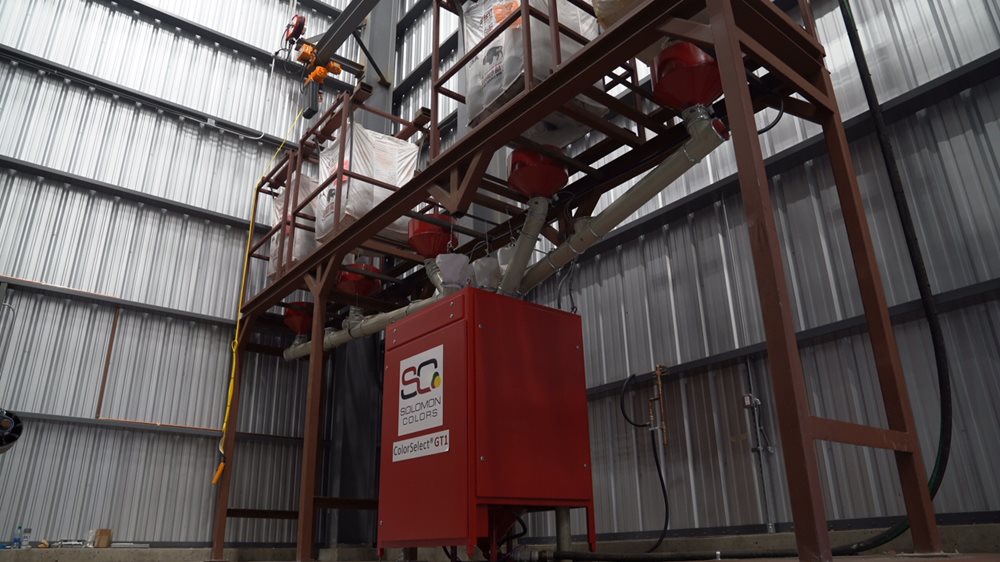

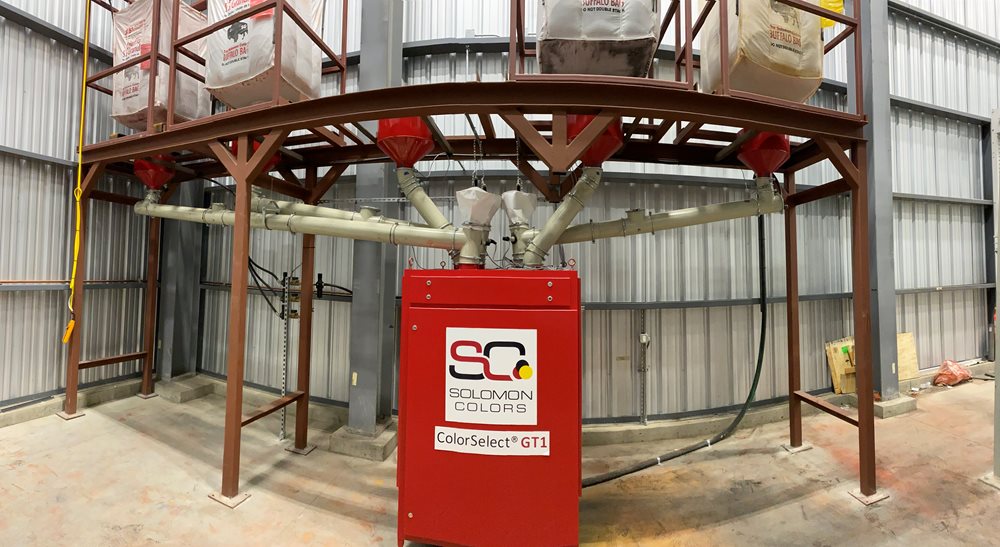

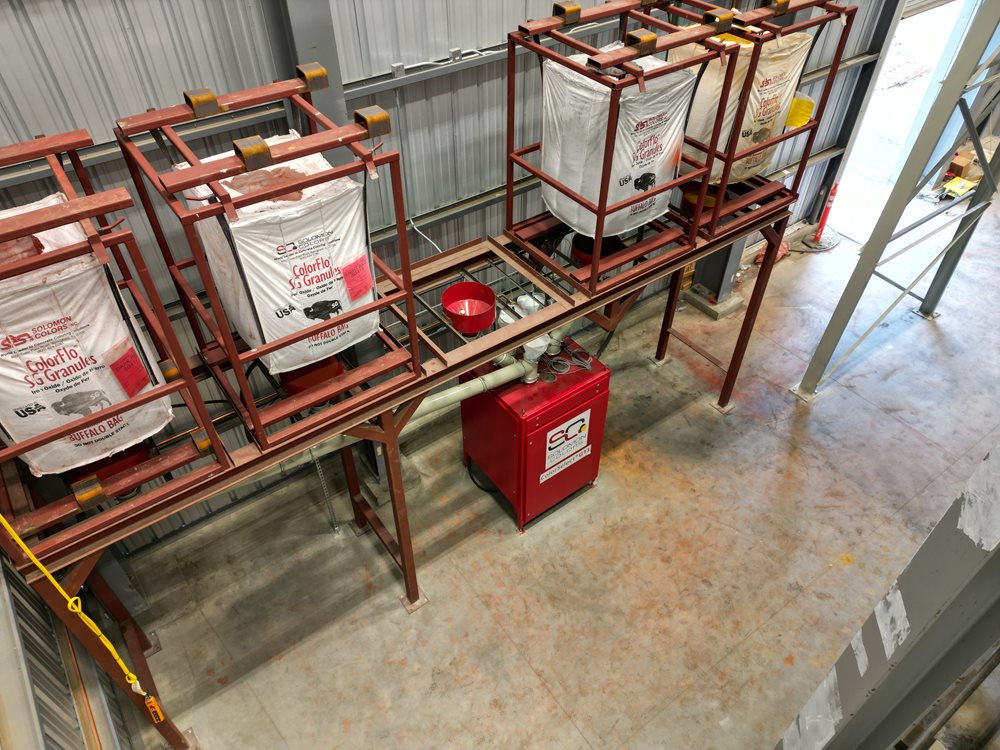

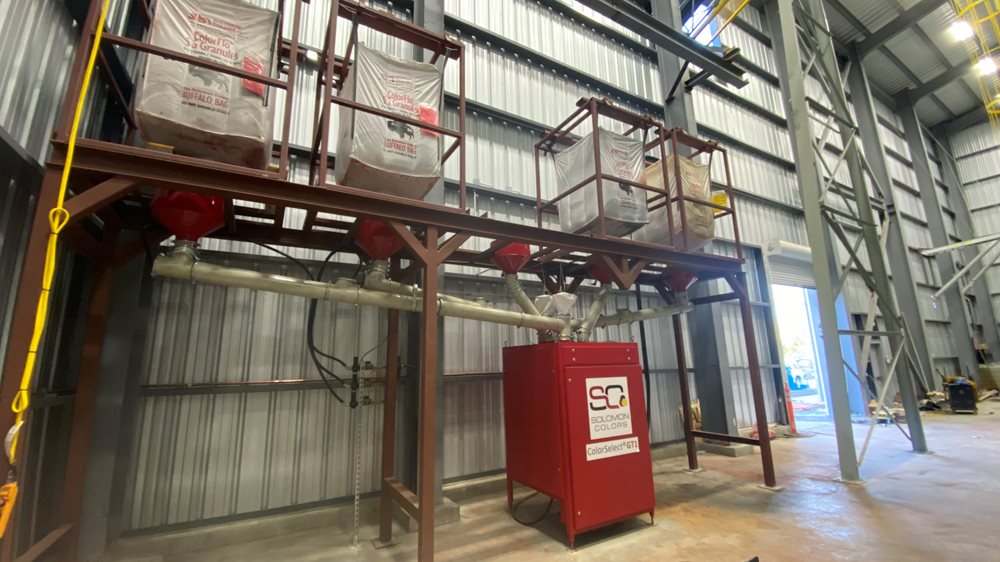

Up to 8 super sack stations
Capable of serving multiple mixers

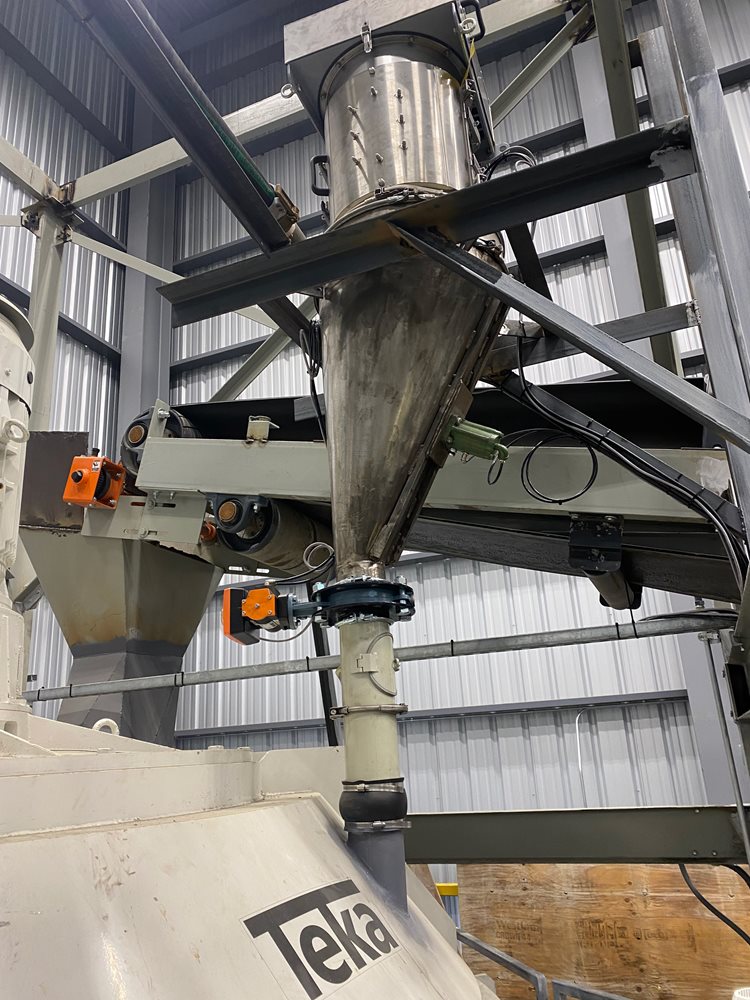

Services up to six cyclones
Dense phase pneumatic conveying
Use with cyclones or direct inject into concrete mixers

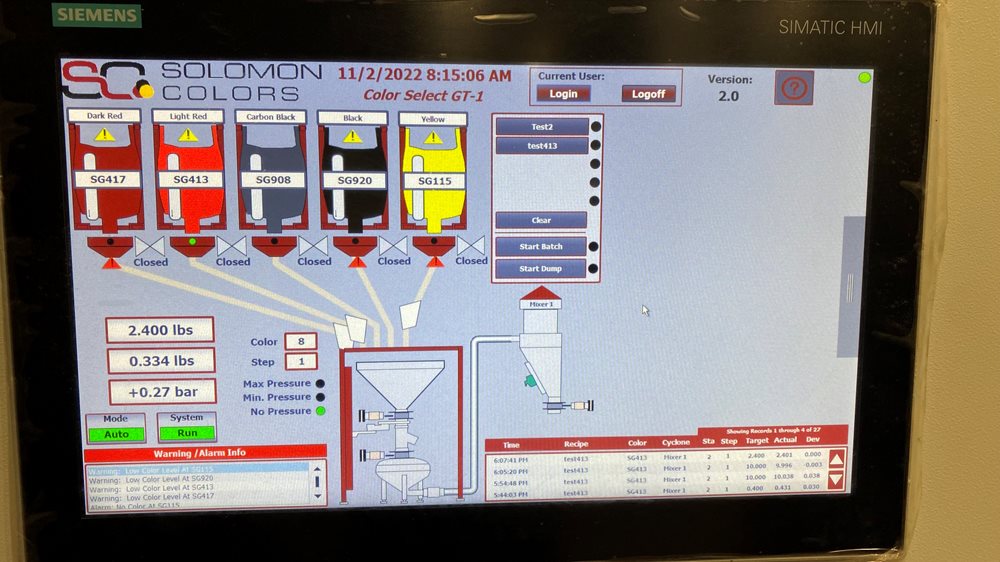

Control unit consisting of a state-of-the-art Siemens 277E PLC control system with HMI and remote access capabilities
Remote access for technical support and updates

Ethernet-based pneumatic control panel and cyclone service panel features advanced diagnostics and easier scalability when adding multiple cyclones
Electronic-assisted control valves for accurate dispensing

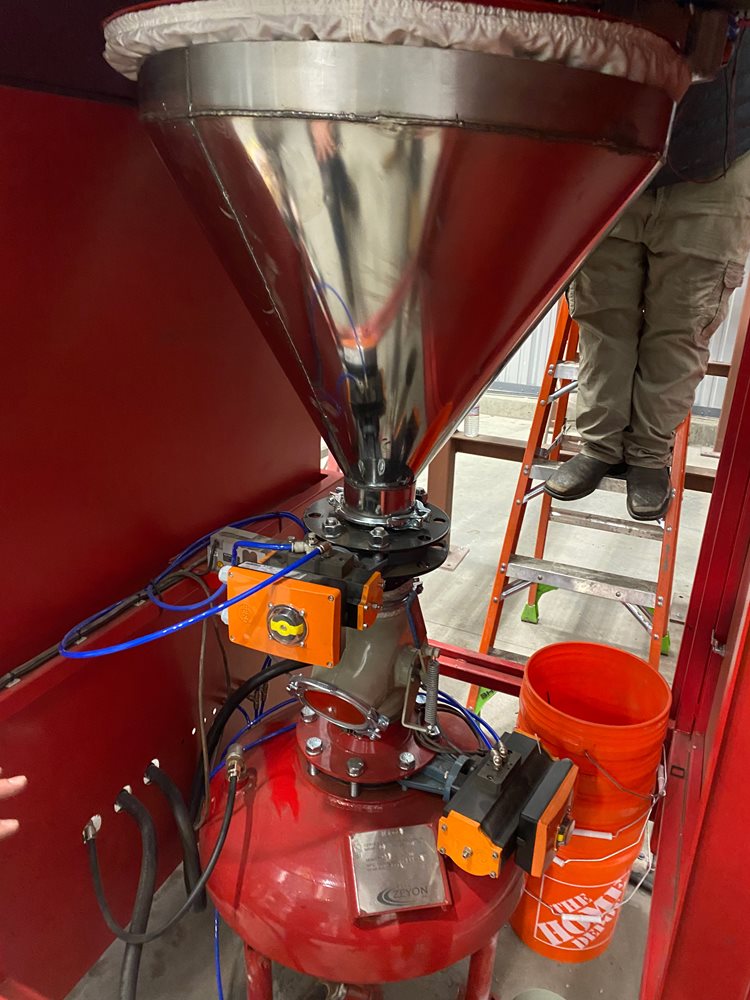

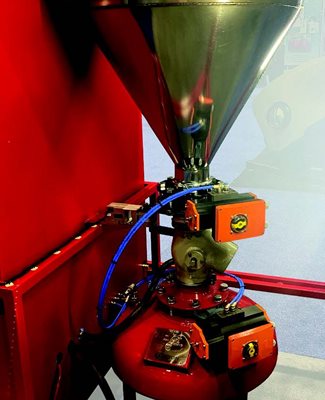

80 lb. capacity scale with stainless steel hopper
The load cell will have operating tolerances of ± 10 grams up to 20 kg. and a maximum load capacity of 35 kg.
Advanced record keeping and reporting
Capable of seamless integration to popular concrete batching plants
